Morocco 500t/d Silver Mineral Processing Plant

Xinhai Solution

• 01

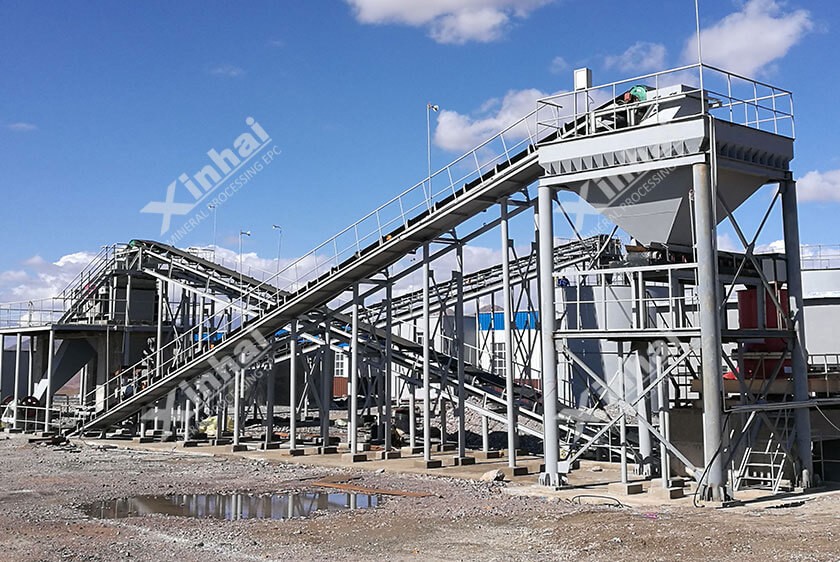

  Crushing: two-stage semi-closed circuit crushing. Jaw crusher was used for coarse and intermediate crushing, cone crusher for fine crushing and circular vibrating screen for screening. Crushed products were transported by belt conveyor to the original fine ore bin and then by trucks to the new plant.

• 02

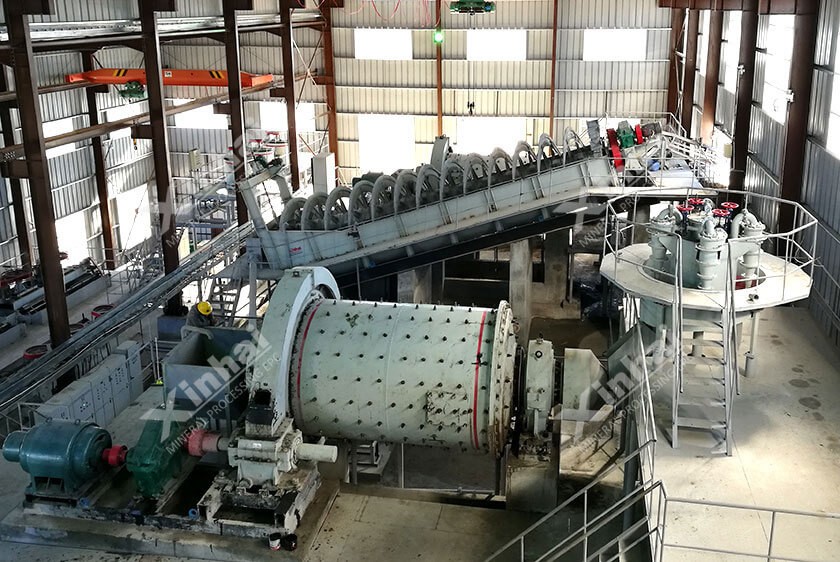

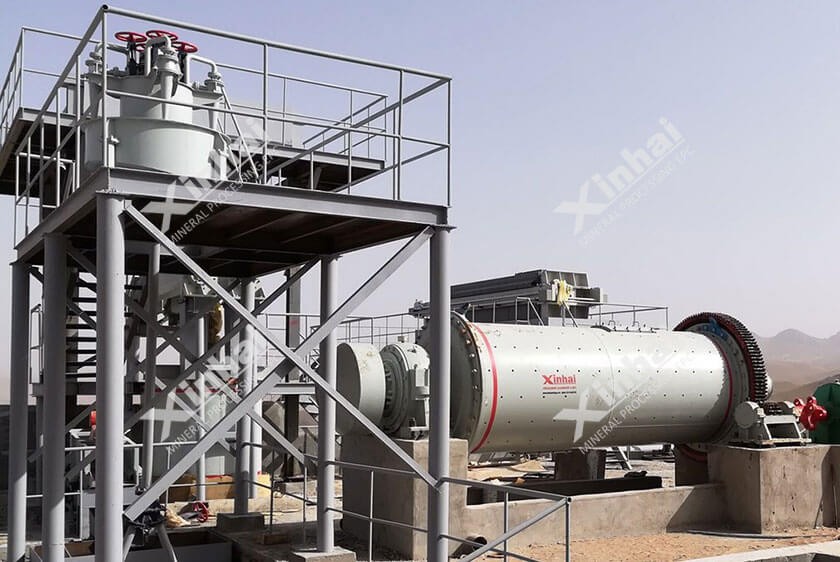

  Grinding: two-stage closed-circuit grinding. Grid ball mill was adopted in the first-stage grinding. Discharged ores were first treated by jig and concentrates by shaking table for concentration; gravity tailings were classified by high-weir single spiral classifier. Wet overflow ball mill was adopted in the second-stage grinding. Hydrocyclone cluster was used for second-stage classification. The fineness of first- and second-stage grinding was -200 mesh (55-60%) and -200 mesh (85-90%) respectively.

• 03

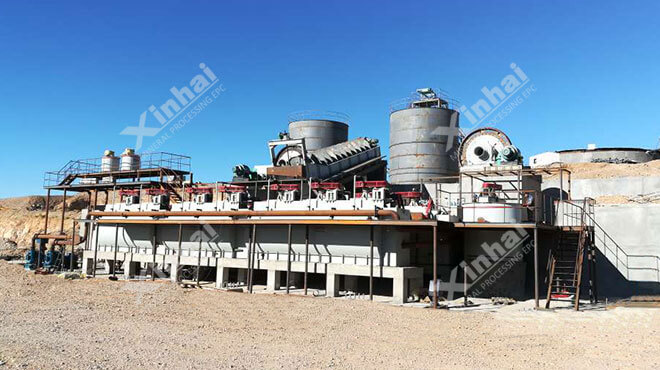

  Flotation: one-stage roughing, three-stage scavenging and two-stage concentration. Concentrates dewatering adopted two-stage mechanical dewatering: thickener in the first stage and filter press in the second stage. The water content of filter cake is around 20%. Tailings were directly discharged in the tailings pond and the water was recycled.

• 04

  Slurry conditioning: the conditioning system was installed in the original plant; ores were fed by grab bucket, conditioned in the high-concentration agitation tank and treated in the current grinding and classification system. The cyclone overflow was thickened by thickener, leached in the original leaching system for over 60h, and washed for five times. The pregnant solution was treated by Merrill Crown System for smelting and tailings were pumped to the tailings pond after treatment.
